Order system overview

Recommended reading

This topic describes the order management APIs in Optimizely Commerce, and provides an overview of components used when working with orders.

In this topic

Working with order APIs

You should avoid casting back and forth between concrete Order classes such as OrderGroup and OrderForm, and abstraction interfaces such as IOrderGroup and IOrderForm. For example, it is recommended to use only one API from the time you load a cart or purchase order until you save it. While this is not always possible, doing it whenever possible helps avoid hidden problems when casting.

Order objects

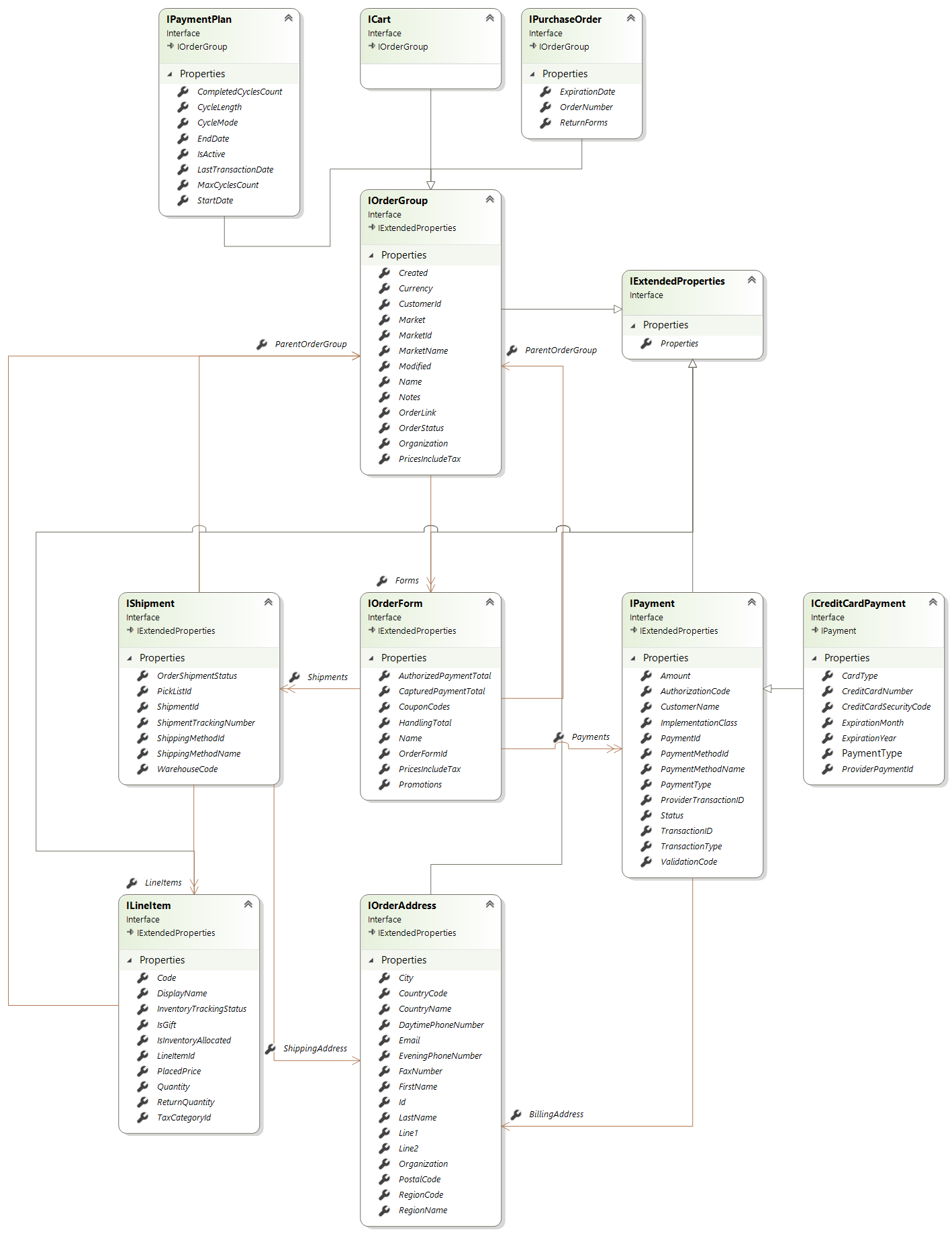

The object model for the Optimizely Commerce order system is below.  For more information, see order manipulation.

Commerce 13


Order manipulation

The diagram below represents how to create, edit, and delete orders. For more information, see order manipulation.

Order manipulation diagram

Order processing

The diagram below represents how to process different actions for orders. For more information, see order processing.

Order calculations

The diagram below represents how to work with calculating totals for orders. For more information, see order calculations.

Do you find this information helpful? Please log in to provide feedback.

Last updated: Jun 18, 2020
